New publication! Group 13 and 14 metal containing Phthalocyanines as hole transport layer in OLEDs!

New publication in Journal of Applied Physics!

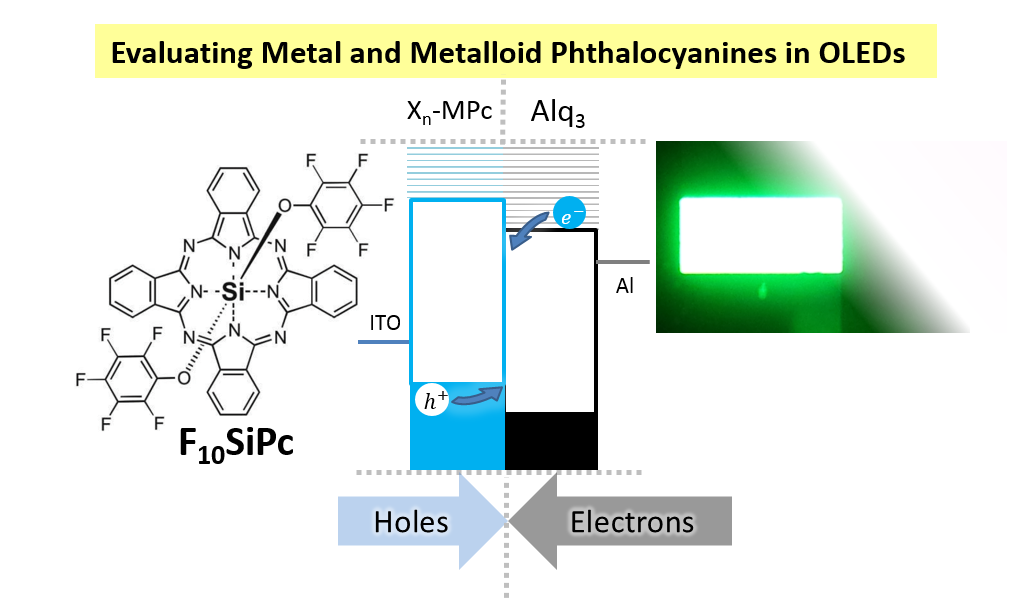

In this study, we have assessed the potential application of group 13 and 14 metal and metalloid phthalocyanines ((X)n-MPcs) and their axially substituted derivatives as hole-transporting layers inorganic light emitting diodes(OLEDs).OLEDs studied herein have the generic structure of glass/ITO/(N,N′-di(1-naphthyl)-N,N′-diphenyl-(1,1′-biphenyl)-4,4′-diamine (NPB) or (X)n-MPc)(50 nm)/Alq3 (60 nm)/LiF (1 nm)/Al (80 nm), where X is an axial substituent group. OLEDs using chloro aluminum phthalocyanine (Cl-AlPc) showed good peak luminance values of 2620 ± 113 cd/m2 at 11 V. To our knowledge, Cl-AlPc has not previously been shown to work as a hole transportmaterial (HTL) in OLEDs. Conversely, the di-chlorides of silicon, germanium, and tin phthalocyanine (Cl2-SiPc, Cl2-GePc, and Cl2-SnPc, respectively) showed poor performance compared to Cl-AlPc, having peak luminances of only 38 ± 4 cd/m2 (12 V), 23 ± 1 cd/m2 (8.5 V), and 59 ± 5 cd/m2 (13.5 V), respectively. However, by performing a simple axial substitution of the chloride groups of Cl2-SiPc with pentafluorophenoxy groups, the resulting bis(pentafluorophenoxy) silicon phthalocyanine (F10-SiPc) containing OLED had a peak luminance of 5141 ± 941 cd/m2 (10 V), a two order of magnitude increase over its chlorinated precursor. This material showedOLEDcharacteristics approaching those of a baseline OLED based on the well-studied triarylamine NPB. Attempts to attach the pentafluorophenoxy axial group to both SnPc and GePc were hindered by synthetic difficulties and low thermal stability, respectively. In light of the performance improvements observed by simple axial substitution of SiPc in OLEDs, the use of axially substituted MPcs in organic electronic devices remains of continuing interest to us and potentially the field in general.

Find it in Publication section

To read the full article visit J. Applied Phys. website
